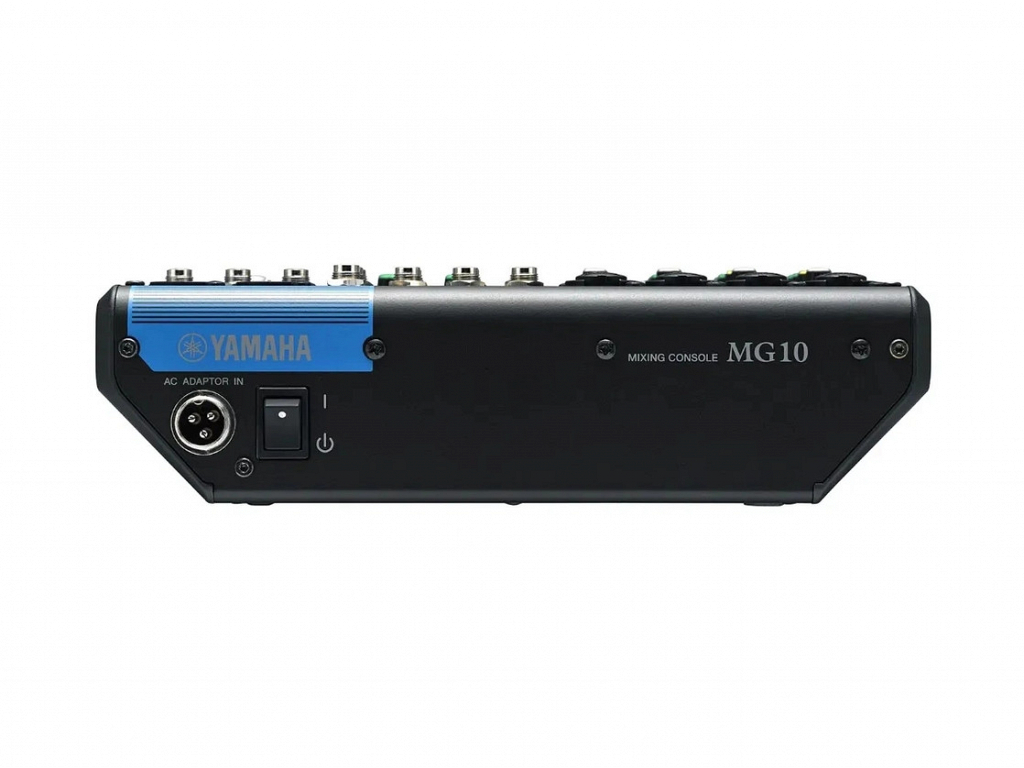

MESA YAMAHA MG 10
Ref.: 19059

Mixer de 10 canais

Por mais de um século, a Yamaha vem construindo um legado de eficiência e inovação que podemos ver e experenciar neste Lineup
que possui desde instrumentos musicais até áudio profissional. Agora, em sua terceira geração, a Linha MG incorpora essa excelência em design
e acrescenta tecnologias encontradas em consoles profissionais de alto desempenho, incluindo pré-amplificadores de qualidade de estúdio, processamento digital e
construção metálica robusta e resistente.

Especificações:
Phantom power: +48 V
Input Channels
Mono[MIC/LINE] 4
Stereo[LINE] 3
Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1
Bus: Stereo: 1, AUX[FX]: 1
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -83 dB
Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaharecommended by Yamaha
Power consumption: 22.9 W
Dimensions: W 244 mm (9.6") / H 71 mm (2.8") / D 294 mm (11.6")
Peso: 1.9 kg (4.19 lbs.)
Acessórios: Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others: Operating Temperature: 0 to +40°C
